Testing a lead-acid battery is more complicated than connecting a meter and reading a single number. A battery can show acceptable voltage yet have insufficient capacity for its application, or it can have enough stored energy but excessive internal resistance for reliable engine cranking. Rapid testers are useful because they provide an assessment in seconds, but their results are estimates or classifications based on a defined test method and reference population.
The distinction matters in automotive, standby, and industrial service. An unsuitable test can lead to premature replacement, allow a weak battery to remain in service, cause a roadside failure, or result in an unnecessary warranty replacement. A resistance- or conductance-based result should therefore not automatically be presented as a direct measurement of capacity.
This article examines three broad rapid-testing concepts: scalar measurements, vector measurements, and frequency-spectrum analysis supported by modeling. It also explains why a reliable assessment normally combines several observations rather than treating one pass/fail result as a complete diagnosis.
What Rapid Lead-Acid Battery Tests Can and Cannot Measure

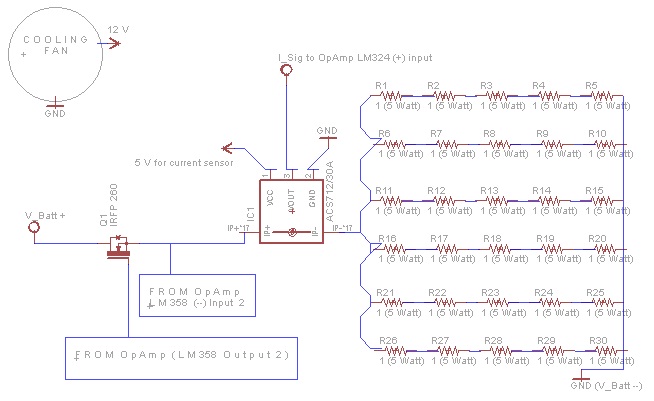

A capacity test measures how much charge or energy a battery can deliver under specified discharge conditions. In practice, it normally involves charging the battery, applying a controlled load, and recording the current and time until a specified endpoint is reached. The result can be expressed in ampere-hours or watt-hours, depending on the test and application. Because the battery must be discharged for a meaningful duration, a true capacity test is relatively slow and is not always practical during routine vehicle service.
A rapid tester usually measures electrical behavior over a short interval and compares the result with stored data. It may report an estimated cold-cranking capability, conductance, resistance, state of charge, or state of health. These values can be useful, but they are not interchangeable:
- State of charge (SoC) describes how much charge is currently available relative to the battery’s present usable capacity.
- State of health (SoH) is a broader estimate of degradation or remaining performance compared with a reference condition.
- Capacity concerns sustained charge delivery during a defined discharge test.
- Reserve capacity describes the ability to supply a specified load for a specified time under a defined procedure.
- Cold-cranking amperes (CCA) concern high-current starting performance under the conditions defined by the applicable battery rating method.
- Internal resistance describes opposition to current flow within the battery and its connections.
- Conductance is an electrical response used by some testers to infer starting capability or battery condition.
Capacity and resistance describe different aspects of battery behavior. A battery may retain adequate short-duration cranking performance while its capacity has declined enough to reduce runtime or reserve performance. Conversely, increased resistance can cause a substantial voltage drop during a high-current event even when the battery still contains considerable stored charge. The relationship between these properties is not fixed across all lead-acid designs, ages, temperatures, and operating histories.
For that reason, measuring resistance or conductance is not the same as measuring capacity. A conductance tester can classify a battery as likely suitable for starting service, or identify one that is clearly weak, without determining the exact ampere-hour capacity remaining. Claims that a simple voltage-and-resistance measurement directly provides capacity should be treated cautiously.
Rapid testing is best understood as a bounded estimation process. The instrument has been developed for a battery population, a range of battery types, and particular input conditions. Its output can be affected by battery temperature, state of charge, surface charge, cable and terminal connections, battery age, construction, rated CCA, and the test mode selected by the operator.
A low state of charge is especially important. A discharged but otherwise serviceable battery may produce a poor result because the tester is evaluating it outside its expected operating condition. That result does not necessarily prove permanent capacity loss. Conversely, charging a degraded battery may improve its voltage and short-term response without restoring its lost capacity.
A useful rapid assessment may include open-circuit voltage, charge condition, conductance or resistance, and an application-specific load test. Where the service decision depends on runtime or reserve capability, a controlled capacity test remains the more direct method. The appropriate combination depends on whether the battery is being evaluated for engine starting, backup operation, cyclic service, or another duty.
Source: Battery University
Scalar, vector, and spectrum-based methods describe different ways of collecting and interpreting these signals. A scalar method reduces the test to a single principal value, such as resistance or conductance. A vector method evaluates more than one electrical component, commonly including magnitude and phase or related response parameters. Frequency-spectrum methods apply signals over multiple frequencies and use a model to compare the response with known battery behavior. These categories are useful for understanding test principles, although equipment manufacturers may use the terms differently.
None of these methods makes battery diagnosis universal. A more complex measurement can provide more information, but the result is only as useful as the model, reference data, test connections, and battery population behind it.
Battery-Test Matrices and Rapid Classification
A battery-testing matrix is a multidimensional reference dataset. It links measured electrical responses with batteries whose condition is known or has been established through other testing. The dimensions can include battery type, rated CCA, capacity, temperature, state of charge, age, and degree of degradation.
When a tester compares a new measurement with such a matrix, it can produce an estimate or classification for properties such as capacity, CCA, or state of charge. The instrument may display a numerical estimate, a condition category, or a pass/fail recommendation. In all cases, the result depends on how closely the tested battery resembles the population represented by the matrix.
One central challenge is separating low state of charge from reduced capacity. Both conditions can cause low voltage under load, weak starting performance, or an unfavorable rapid-test result. A battery that has been left discharged may recover much of its performance after proper charging, whereas a battery with sulfation, corrosion, shedding, or other degradation may not. Repeating the test after suitable charging can help distinguish these conditions, but it does not replace a controlled capacity test when capacity is the question being asked.
Building a useful matrix requires many batteries tested across a range of conditions. The sample should include different states of health and levels of capacity loss, not only new batteries and obvious failures. It should also represent the intended application, battery models, temperatures, climates, operating patterns, and maintenance histories.
Naturally aged batteries are important because real-world degradation is not always reproduced by accelerated laboratory procedures. Environmental chambers, repeated cycling, or other forced-aging methods can be valuable for controlled experiments, but they may produce a different combination of corrosion, sulfation, electrolyte behavior, active-material loss, and mechanical damage from batteries aged in vehicles or standby systems. A matrix based primarily on artificial aging may therefore classify field batteries less reliably than expected.
A generic matrix can be practical when it is intended for a broad group of similar batteries rather than one exact model. Some systems use the battery’s rated capacity and CCA as user inputs and then classify the result against a generic population. This reduces the need to store a separate detailed model for every battery, but it also introduces uncertainty when the battery design, rating convention, temperature, or application differs substantially from the reference group.
The following comparison summarizes the broad method categories:
| Method | Excitation or measurement | Typical application | Main output and limitation |
|---|---|---|---|
| Scalar testing | A single principal response, often voltage, resistance, or conductance | Fast service screening | Quick classification, but limited information about failure mode and sustained capacity |
| Vector testing | Multiple related electrical quantities, such as magnitude and phase | More discriminating rapid assessment | Provides more response information, but still depends on calibration and reference data |
| Frequency-spectrum analysis with modeling | Response measured over a range of frequencies and compared with an electrochemical or empirical model | Advanced estimation of several battery characteristics | Can separate more features of battery behavior, but is model-dependent and not a substitute for every direct test |
The terms scalar and vector are not used identically by every vendor. The important practical distinction is whether the instrument uses one simplified response or several components of the battery’s electrical response. Frequency-domain systems may use complex impedance or related measurements, but a sophisticated signal does not automatically guarantee an accurate capacity estimate.
Published claims for particular systems must also be kept in context. The Battery University source associated with the Spectro system reports capacity classification for approximately 8 out of 10 batteries and CCA classification for approximately 9 out of 10. It also contrasts those results with a claim that many resistance-based testers achieve predictions only slightly better than chance, described as about 5 correct results out of 10. These are reported, system-specific figures rather than universal performance values for every tester, battery population, or service condition.
Similarly, operating state-of-charge requirements are not universal. A tester may require the battery to be sufficiently charged for its algorithm to work within its validated range. Some published descriptions cite roughly 70 percent state of charge for many testers and a lower threshold for a particular system, but such values should be checked against the current manufacturer’s instructions rather than applied as a general rule.
A pass/fail result is therefore conditional. It depends on the reference population, the battery specifications entered by the user, the battery’s charge state, temperature, terminal condition, selected test mode, and the intended meaning of failure. A result that is valid for starting capability may say little about reserve runtime in a standby or cyclic application.
Interpreting Test Results: Combine Measurements Instead of Relying on Pass or Fail
No single measurement diagnoses every lead-acid battery fault. A useful service procedure begins by asking what the battery must do. Starting a vehicle, supporting a standby load, and operating through repeated discharge cycles place different demands on the battery.
A practical assessment may combine the following checks:
- Visual and connection inspection. Look for damaged cases, leakage, corrosion, loose terminals, swollen components, or wiring problems. A poor connection can imitate battery resistance.
- Charge-condition check. Determine whether the battery has been adequately charged and whether surface charge or recent charging could influence the reading.
- Open-circuit voltage. Use voltage as an indicator of charge condition, not as a complete measure of health or capacity.
- Conductance or resistance testing. Use the result as a rapid indication of starting-related performance or condition within the tester’s intended range.
- Load or application test. Where appropriate, observe voltage behavior under a defined high-current or operating load.
- Capacity testing. Use a controlled discharge when sustained runtime, reserve capacity, or actual ampere-hour performance is important.
- Trend tracking. Repeat measurements under comparable conditions when monitoring a fleet, standby system, or regularly serviced vehicle.
The purpose of combining measurements is not to create a more complicated pass/fail ritual. It is to separate different questions. Is the battery charged? Can it deliver the required starting current? Does it retain sufficient capacity for the load duration? Is the problem in the battery, the charging system, the starter, the cables, or the application?
A rapid tester may identify a battery as likely serviceable or likely failed, but that is different from identifying the specific cause of degradation. A failed classification may reflect low charge, a bad cell, high resistance, severe capacity loss, poor connections, an incorrect battery selection, or conditions outside the instrument’s validated range. The test report should be interpreted with the battery’s history and application rather than in isolation.
State of charge and state of health should also remain separate in service records. A battery can have high state of charge but poor health, or low state of charge while retaining much of its original capacity. A CCA estimate describes starting-related capability; it does not directly state reserve capacity or runtime. Likewise, a measured capacity from a controlled discharge should not be replaced by a conductance number simply because both appear on a service report.
Temperature, battery type, age, operating history, recent charging, and test connections can all influence results. Follow the tester and battery manufacturer’s procedures, use the correct rating system and battery type, and correct connection problems before drawing conclusions. If a result is marginal or conflicts with the battery’s observed behavior, repeat the assessment after suitable charging and consider a direct load or capacity test.
The most reliable interpretation is therefore comparative and application-specific. Rapid testing is valuable for screening, maintenance decisions, and identifying batteries that need further attention. It is not a universal diagnostic method, and a single pass/fail label should not be treated as proof of exact capacity, remaining service life, or the underlying failure mechanism.
